- 規格型號：30752212
- 頻率：32.768kHz
- 尺寸：3215mm
- 產品描述：OM-7604-C7-32.768kHz-20PPM-TA-QC,Micro晶振,有源晶體振蕩器,-40℃~+85℃工業級溫度范圍,頻率漂移也能嚴格控制在極小范圍,有效抵御溫度波動對計時精度的影響,保障設備時間基準的長期穩定性.

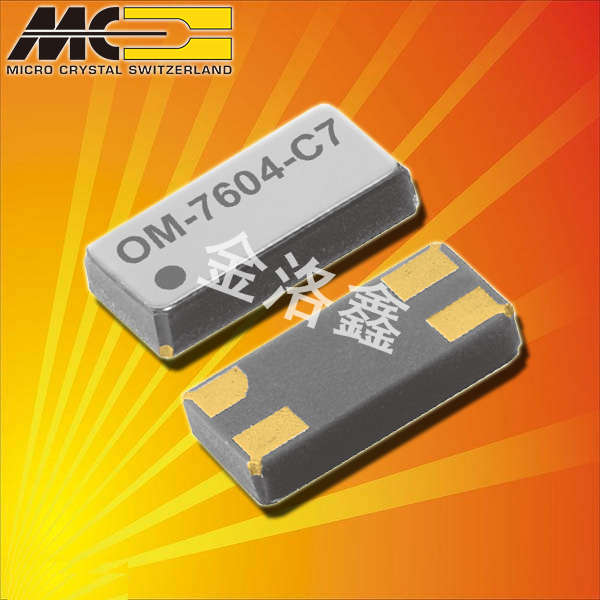

OM-7604-C7-32.768kHz-20PPM-TA-QC,Micro晶振,有源晶體振蕩器
.png)
.png)
OM-7604-C7-32.768kHz-20PPM-TA-QC,Micro晶振,有源晶體振蕩器
作為Micro品牌旗下XO有源晶體振蕩器代表產品,OM-7604-C7-32.768kHz-20PPM-TA-QC依托品牌在頻率控制元器件領域的研發與制造經驗,建立全流程嚴格的質量管控體系:選用高純度石英晶體作為核心諧振元件,搭配高性能振蕩芯片,從源頭確保頻率基準的穩定性與信號輸出質量,采用自動化貼片封裝生產線,實現元件尺寸的精準控制,保障批量生產的一致性,減少人工操作帶來的偏差,成品階段需經過高溫老化測試,全溫區頻率特性測試,輸出信號波形驗證,電氣性能全項檢測等多道工序,每一款產品均符合國際通用的有源振蕩器性能標準,為下游設備廠商提供可靠的元器件供應保障,降低產品故障率.
.png)
.png)
OM-7604-C7-32.768kHz-20PPM-TA-QC,Micro晶振,有源晶體振蕩器
| 原廠型號 Originalmodel： | OM-7604-C7-32.768kHz-20PPM-TA-QC | 品牌brand： | Micro微晶 |
| Manufacturer品牌 |
瑞士微晶Micro晶振 |
OperatingTemperature溫度 | -40℃~+85℃ |
| Series型號 | ECS-3953M | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 0.7mm |
| Frequency頻率 | 32.768kHz | Termination 腳位 | 4-pad |
| 輸出方式 Output： | CMOS輸出 | PackageType 封裝類型 | 4-Smd |
| Voltage-Supply電壓 | 1.2V ~ 5.5V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±20ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3215mm | 最小包裝數MPQ： | 3000 |
.png)
.png)
OM-7604-C7-32.768kHz-20PPM-TA-QC,Micro晶振,有源晶體振蕩器
.png)
OM-7604-C7-32.768kHz-20PPM-TA-QC,Micro晶振,有源晶體振蕩器
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 100 PPM |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro微晶晶振 | Crystals | 100 kHz | 100 PPM |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| 202684-MC03 | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
| 202273-EA00 | Micro微晶晶振 | Clock Oscillators | 128 MHz | |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro微晶晶振 | Clock Oscillators | 32.768 kHz | |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro微晶晶振 | Crystals | 32.768 kHz | 20 PPM |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro微晶晶振 | Crystals | 32.768 kHz | 10 PPM |
