首頁歐美晶振ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振

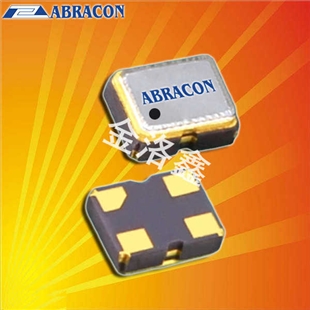

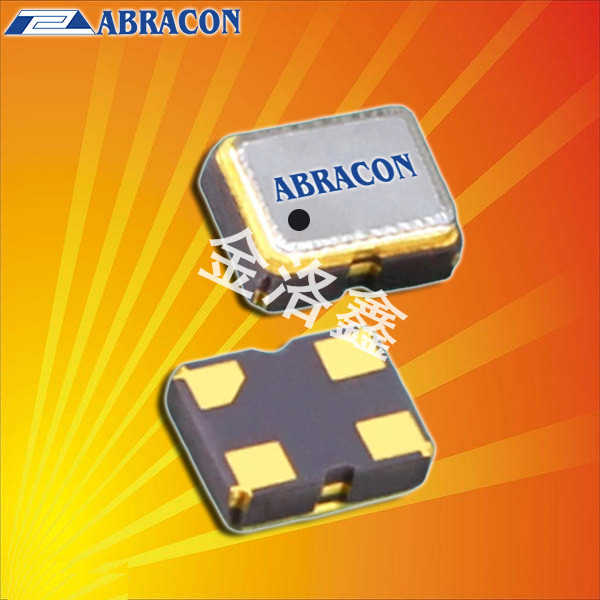

    ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振

  • 規格型號：43600684
  • 頻率：24 MHz
  • 尺寸：2520mm
  • PDF
  • 產品描述：ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振以低電壓互補金屬氧化物半導體(LVCMOS)輸出方式為核心優勢,適配FPGA,CPU,微控制器等數字芯片,廣泛應用于智能手機,平板電腦,工業計算機,智能穿戴設備等產品.


ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振
作為Abracon旗下高性能頻率控制元件,ASDMB-24.000MHZ-LC-T晶振以24.000MHz精準輸出頻率為核心,搭載LVCMOS輸出接口,適配數字電路系統的信號需求.其采用精密石英晶體加工工藝,頻率穩定度可達±50ppm,在-40℃~85℃寬溫環境下能保持穩定性能,同時支持3.3V標準供電,典型工作電流低至8mA,有效降低設備能耗.該晶振適配路由器,物聯網網關,工業控制模塊等場景,LVCMOS輸出的低噪聲特性可減少信號傳輸干擾,為設備的高速數據處理與穩定通信提供可靠時鐘支撐.


ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振
原廠型號 Originalmodel： ASDMB-24.000MHZ-LC-T 品牌brand： Abracon晶振
Manufacturer品牌 Abracon黑色面陶瓷晶振 OperatingTemperature溫度 -40C +85C
Series型號 ASDMB Current-Supply(Max)  -
Type類型 XO PackageHeight高度 0.85mm
Frequency頻率 24M Termination  腳位 4-pad
輸出方式 Output： LVCMOS PackageType  封裝類型 4-Smd
Voltage-Supply電壓 1.8-3.3V Packaging  包裝 TapeandReel
FrequencyStability頻率穩定度 50PP 安裝方式 Installation： Surfacemount
Size/Dimension尺寸 2520mm 最小包裝數MPQ： 3000


ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振


ASDMB-24.000MHZ-LC-T,Abracon歐美晶振,LVCMOS輸出晶振
12.87000  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87001  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 9 pF ± 20 ppm
12.87002  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 7 pF ± 20 ppm
12.87034  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 4 pF ± 20 ppm
12.87080  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87081  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87083  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87086  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 10 ppm
12.87090  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87095  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87105  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 10 ppm
12.87107  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87109  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12 pF ± 15 ppm
12.87110  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87111  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87112  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87113  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87114  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87115  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87116  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87118  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87119  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87120  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87121  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87123  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87126  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87127  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87128  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 20 ppm
12.87129  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87130  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87131  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87132  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87133  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87134  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87135  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87136  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87137  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 9 pF ± 20 ppm
12.87138  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87139  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87143  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87144  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 5.0 ppm
12.87145  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87146  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87147  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87148  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87149  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87150  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87151  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 30 ppm
12.87152  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87153  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87155  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87157  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87158  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87159  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87160  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87161  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87163  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 7 pF ± 20 ppm
12.87164  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 30 ppm
12.87165  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 20 ppm
12.87166  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
